Parent/Child in Maya

Share |

Look at the image below.

click to enlarge

The blue and red and green cube is the parent, and the orange cubes are the children. We will rotate the parent cube 90 degrees on the Y axis.

click to enlarge

Since the orange cubes are the children, they will move exactly in porportion with the parent object.

Example

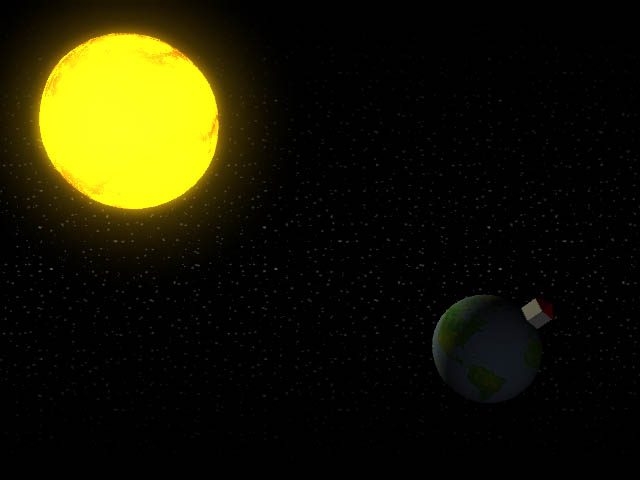

The image above shows that the child objects have no connection to the outside world when under the parent object. An example of this would be image space. Now, picture our planet (parent object) and a house (child object) sitting on it.

click to enlarge

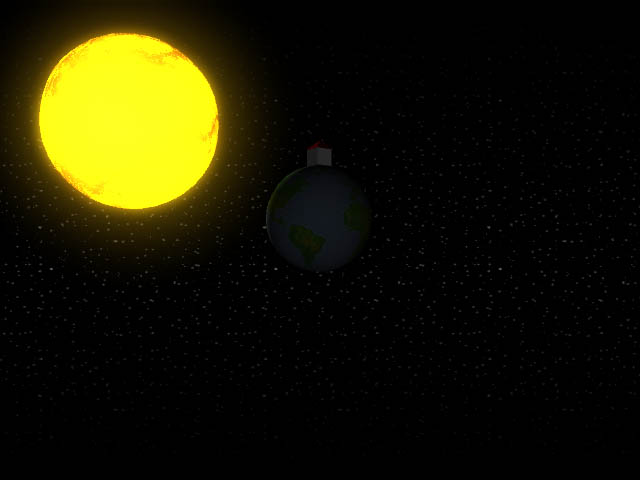

When we move the globe (parent object), the house (child object) does not change its position on the globe. But its position in the universe has been changed.

click to enlarge

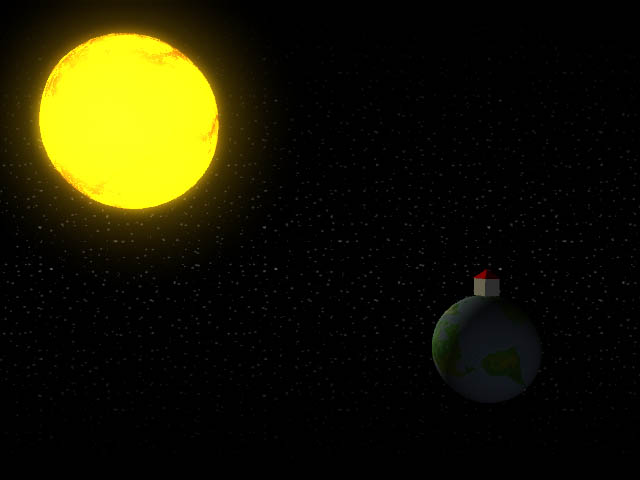

We can move the house to a different position on the globe.

click to enlarge

Now its position in the universe and on the globe would change.

But, if we were to rotate the globe , it would stay in the previous position in the universe, but the position on the globe would still be changed.

click to enlarge

These are the basic principals of a parent and child relationship.

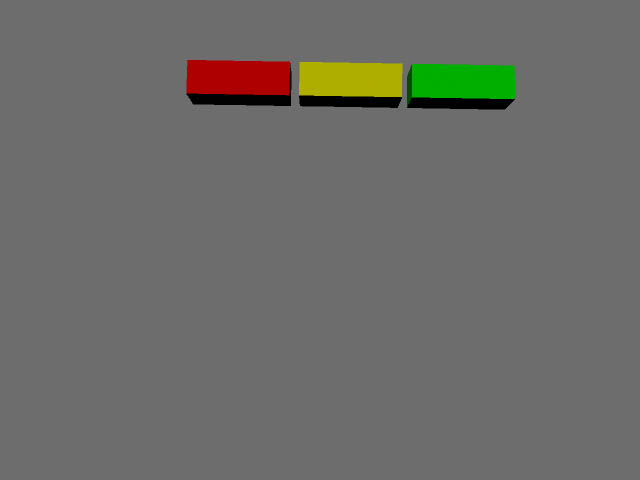

Look at the 3 cubes in the image below.

click to enlarge

The 2nd cube is a child of the 1st cube, and the first cube is the parent. The 3rd cube is a child of the 2nd cube, so the 2nd cube is its parent. No object can have more than one parent, but its parent can have a parent. A parent can have as many children as you need.

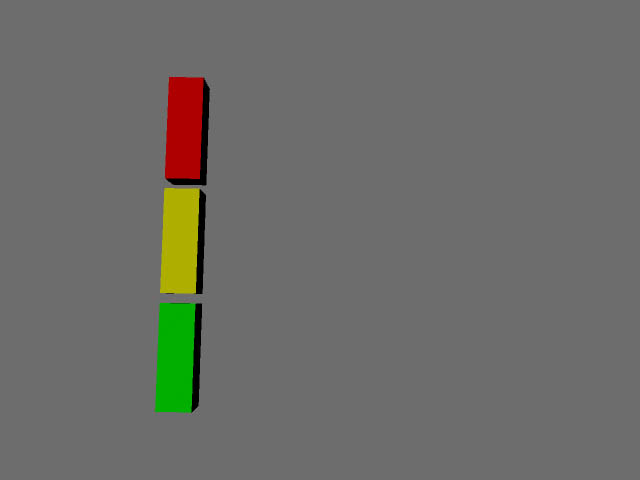

So if we were to rotate the 1st cube 90 degrees, all the cubes would move.

click to enlarge

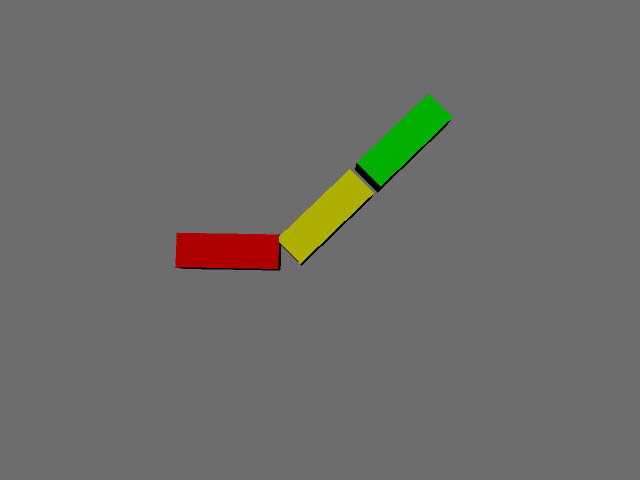

Now, when we rotate the 2nd cube 45 degrees, the 1st cube will be left unaffected because it's a parent, upstream from the 2nd cube.The 3rd cube would rotate with the 2nd cube.

click to enlarge

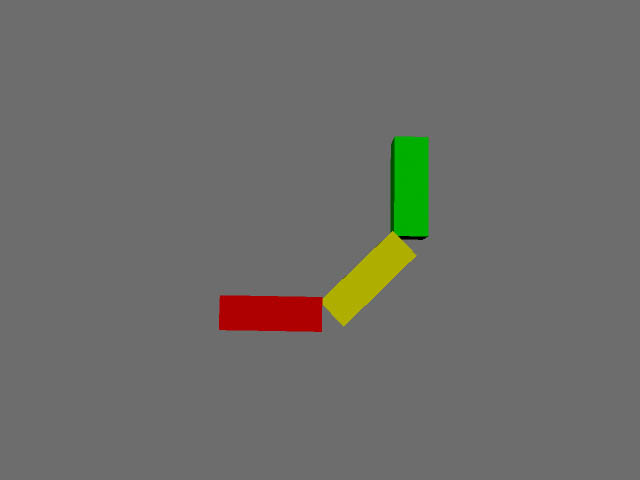

We rotate the 3rd cube 45 degrees. None of the other cubes will change. The 3rd cube is only a child, it has no cubes beneath it that it could be a parent of.

click to enlarge

The 2nd and 3rd cube have been rotated 45 degrees each, but they total 90 degrees. So that means the 3rd cube will be facing straight up and down, just like it was before.

Creating A Parent And Child In Maya

Step one - Select your model(s) that you want to be children.

Step two - Select your parent object.

Step three - Go to edit>parent.
